Specifications
| RIDGID catalogue number (MPN) | 26107 |
| Model | 1224 |
| Pipe capacity | 1/4"–2" at 36 rpm; 2½"–4" (65–100 mm) at 12 rpm; 4"–6" (100–150 mm) with the 161 geared threader |
| Bolt capacity | 1/4"–2" (6–50 mm) |
| Die heads | 911 / 914 (BSPT) |
| Spindle speed | 36 / 12 rpm |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Phase | Single phase |
| Motor | Induction |
| Current draw | 8 A |
| Motor control | Reverse / off / forward rotary switch with integral foot switch |
| Gearbox | Two-speed, 3:1 ratio |
| Chuck | Hammer-type, replaceable rocker-action jaw inserts |
| Rear centring device | Cam action |
| Oil pump | Self-priming gerotor type, automatic reversing, constant flow |
| Weight | 210 kg |
| EAN / GTIN | 0095691261076 |
| HS tariff code | 8459700000 |
| Country of origin | United States |
Part no. 26107

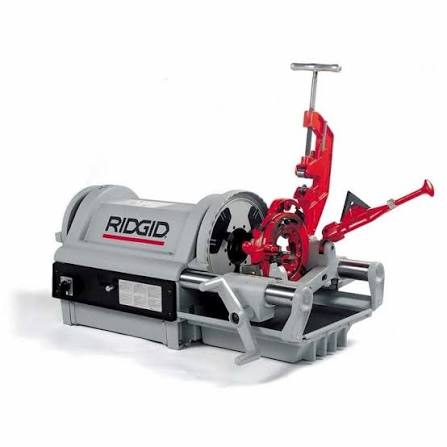

RIDGID 1224 Pipe Threading Machine 1/2-4 220/240V 50HZ BSPT (26107)
Includes 15% VAT · Price in South African rand
Pay securely by card Account terms for approved trade customers Formal quote for your PO
- RIDGID’s published limited warranty — genuine factory stock
- Delivered across South Africa and sub-Saharan Africa
The RIDGID 1224 is a heavy-duty threading machine for the workshop or a large site, covering 1/4" to 4" pipe. This is the 230 V, 50 Hz single-phase BSPT version, and it comes with two die heads, BSPT dies, a cutter and a reamer, so it is ready to thread when it arrives.
Key features
- Induction motor runs quietly, which helps in a shared workshop.
- Capacitor-start / capacitor-run motor keeps threading through the full range of material, even where the site supply voltage sags.
- Universal 1/4"–2" die head plus a receding 2½"–4" die head, for tapered or straight threads (BSPT/BSPP, or NPT/NPSM with the matching dies).
- Two-speed gearbox (3:1 ratio): 36 rpm for smaller pipe and 12 rpm for 2½"–4".
- Oil is fed through the die head, so the dies and the work stay lubricated throughout the cut.
- Hammer-type chuck with replaceable jaw inserts and a cam-action rear centring device.
Specifications
| RIDGID catalogue number (MPN) | 26107 |
| Model | 1224 |
| Pipe capacity | 1/4"–2" at 36 rpm; 2½"–4" (65–100 mm) at 12 rpm; 4"–6" (100–150 mm) with the 161 geared threader |
| Bolt capacity | 1/4"–2" (6–50 mm) |
| Die heads | 911 / 914 (BSPT) |
| Spindle speed | 36 / 12 rpm |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Phase | Single phase |
| Motor | Induction |
| Current draw | 8 A |
| Motor control | Reverse / off / forward rotary switch with integral foot switch |
| Gearbox | Two-speed, 3:1 ratio |
| Chuck | Hammer-type, replaceable rocker-action jaw inserts |
| Rear centring device | Cam action |
| Oil pump | Self-priming gerotor type, automatic reversing, constant flow |
| Weight | 210 kg |
| EAN / GTIN | 0095691261076 |
| HS tariff code | 8459700000 |
| Country of origin | United States |
In the box
- 911 die head, BSPT (dies listed separately below)
- 914 die head, BSPT (dies listed separately below)
- Universal BSPT dies, 1/2"–3/4"
- Universal BSPT dies, 1"–2"
- 1224 high-speed BSPT dies, 2½"–4"
- 26212 wheel-type cutter, 1/4"–4"
- F229 heavy-duty cutter wheel (3" and 4")
- 26217 blade-type reamer, 1/4"–4"
- 11931 thread cutting oil
- Hex keys: 3/16", 7/32" and 1/4"
- 3/4" combination spanner
- Tool box
Buying from Utilitech
We are the Official RIDGID Importer, so this is genuine factory stock carrying RIDGID’s manufacturer warranty — not grey import. Delivery inside South Africa is calculated at checkout: live courier rates for parcels, or a flat palletised-freight rate for heavy machines. For export orders, courier delivery (including duties and taxes) is shown at checkout; export shipments over 70 kg and export orders over R50,000 are freight-quoted, and nothing is dispatched until you accept the quote. We ship across South Africa and to 49 other African countries.
