Specifications
| Voltage | 230 V |
|---|---|
| Speed | 36 rpm |
| Nominal Pipe Capacity | 1/8" - 3" 2 1/2" - 4" with optional 141 geared threader |
| Bolt Capacity | 10mm - 52mm up to 30 Rc |
| Spindle Speed | 36 RPM |
| Motor | 1,700 W Universal |
| Switches | Reverse/Off/Forward, heavy duty, rotary-type plus integral footswitch |
| Chuck | Hammer-type with replacable rocker-action jaw inserts |
| Rear Centering Device | Cam Action |
| Oiling System | Adjustable flow; through-head, with an integal oil reservoir. Self priming, constant-flow, geroter pump. |
Part no. 20215

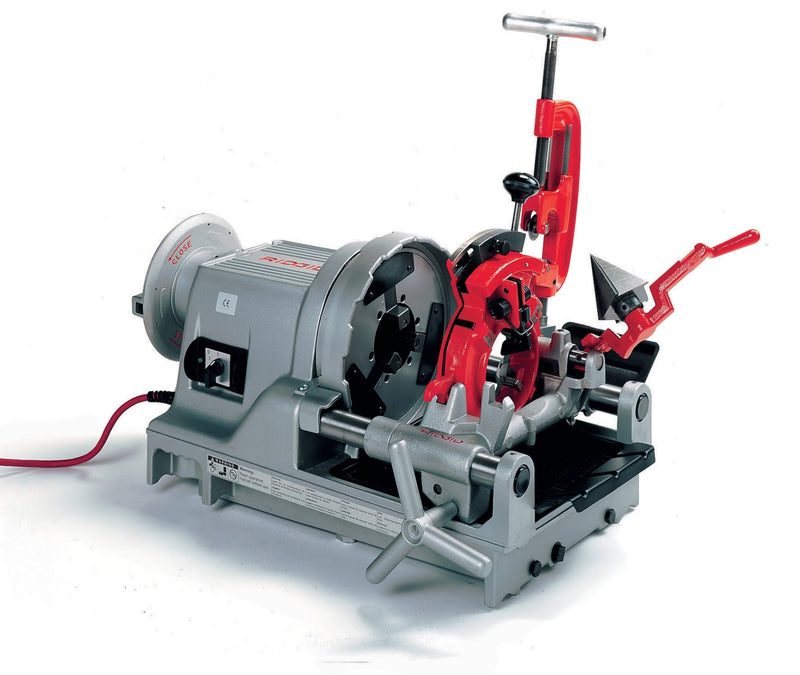

RIDGID 1233 Pipe Threading Machine 220-240V BSPT Europe (20215)
Original price
R 164,465.00
-
Original price
R 164,465.00
Original price
R 164,465.00
R 164,465.00
-
R 164,465.00
Current price
R 164,465.00
Includes 15% VAT · Price in South African rand
Pay securely by card Account terms for approved trade customers Formal quote for your PO
Trade customer? Volume and account pricing for distributors & resellers.
Availability:
Available for import order — 4–6 weeks
- RIDGID’s published limited warranty — genuine factory stock
- Delivered across South Africa and sub-Saharan Africa
Genuine RIDGID product 20215 — 1233 220-240V BSPT Europe. Supplied by the Official RIDGID Importer with RIDGID’s manufacturer warranty.
Key features
- Threads 1/8" - 3" pipe at 36 RPM
- Constant and proper lubrication of dies and workpiece with through-head oiling
- Suitable for use with RIDGID 916, 918, and 975 Roll Groover
Specifications
| Voltage | 230 V |
|---|---|
| Speed | 36 rpm |
| Nominal Pipe Capacity | 1/8" - 3" 2 1/2" - 4" with optional 141 geared threader |
| Bolt Capacity | 10mm - 52mm up to 30 Rc |
| Spindle Speed | 36 RPM |
| Motor | 1,700 W Universal |
| Switches | Reverse/Off/Forward, heavy duty, rotary-type plus integral footswitch |
| Chuck | Hammer-type with replacable rocker-action jaw inserts |
| Rear Centering Device | Cam Action |
| Oiling System | Adjustable flow; through-head, with an integal oil reservoir. Self priming, constant-flow, geroter pump. |
In the box
- 11931: Thread Cutting Oil
- 93562: 928 2 1/2" - 3" BSPT, Self Opening, RH
- Die heads: Model 928 2 1/2-3''BSPT, Self-Opening, RH
- Model 815A 1/8-2'' BSPT, Self-Opening, RH
- Dies: 1/2-3/4'' BSPT Alloy, 1-2'' BSPT Alloy, 2 1/2-3'' BSPT High Speed
- Cutter: Model 763, 1/4-3'', self-centering, with E-1032 cutter wheel
- Reamer: Model 743, 1/4-3'', 5-Fluted
- Key, Hex 5/32, 5/16, 1/4
- RIDGID catalogue number (MPN): 20215
- EAN/GTIN: 95691202154
- Chargeable weight (volumetric): 81.0 kg
- Country of origin: United States
